DESCRIPTION

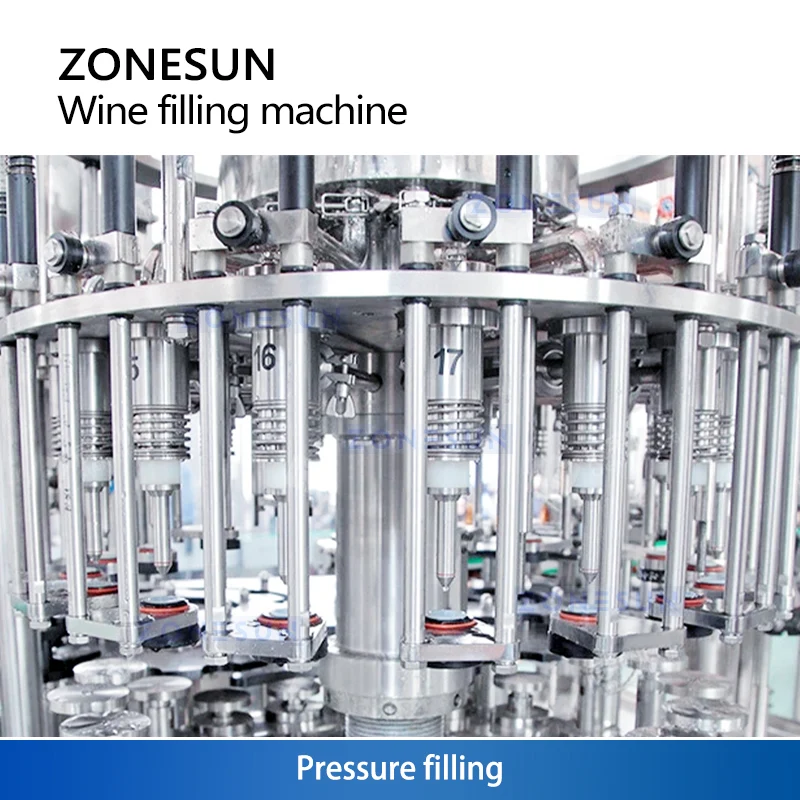

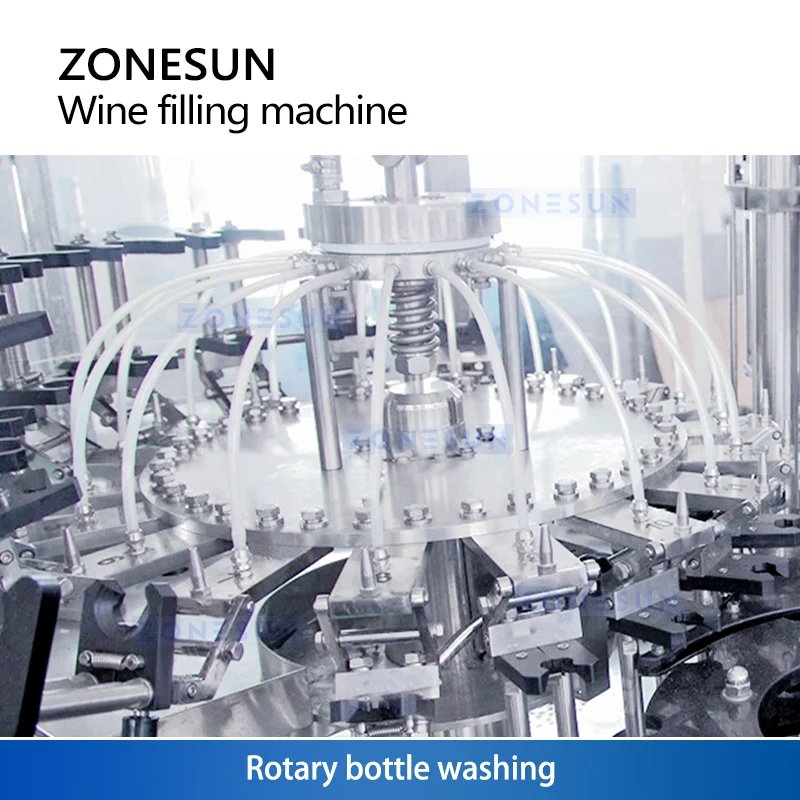

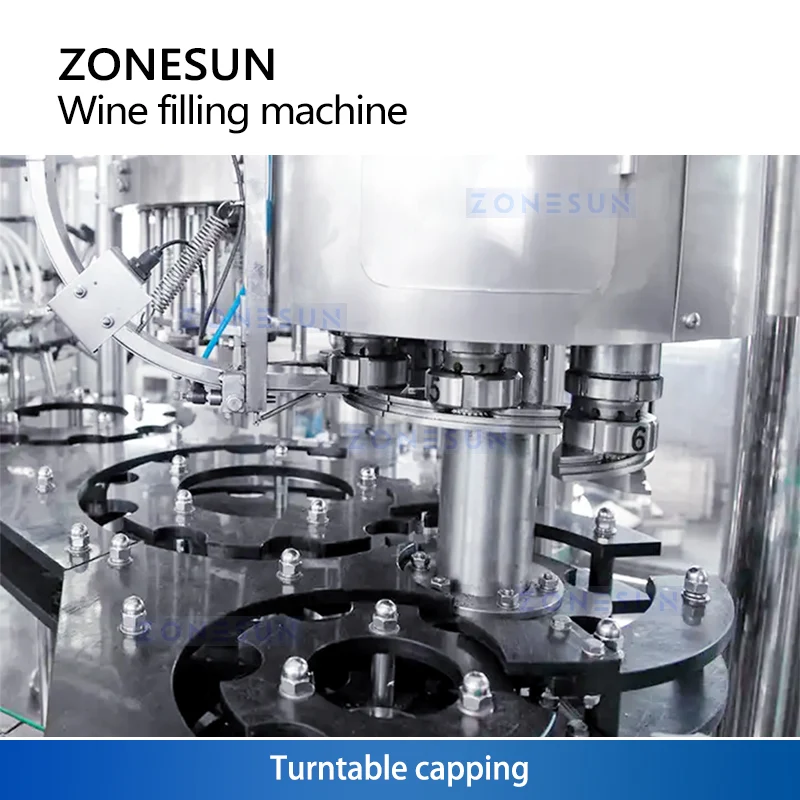

Introducing our fully automatic bottle rinsing, filling, and capping machine, designed specifically for efficient beer bottling. This machine automates the entire process, including bottle transferring, rinsing, filling, and capping, eliminating the need for manual operation. The mechanical transmission utilizes a mechanical rocker linkage system, ensuring smooth, reliable operation and precise positioning, which minimizes the risk of faults. Featuring CO2 back-pressure filling with a low-pressure differential closed system, the machine ensures accurate filling volumes while reducing foam and waste. Equipped with imported flow meters for precise measurement, this production line guarantees high-quality results every time.
Specifications
- Model: ZS-WFC18
- Power: 3.5kW
- Filling accuracy: ±1%
- Production capacity: 3500 bottles/hour
- Applicable bottle diameter: 20–100mm
- Applicable bottle height: 170–320mm
- Dimensions: 2600 * 2100 * 2700mm
- Weight: 3500kg
