Parameter

Model	ZS-DTMP4AL
Power Supply	110/220V 50-60HZ 300W
Max Flow Rate	6L/min (Based on water)
Working Speed	20-30 bottles/min
Air Pressure	0.3-0.4MPa
Filling Accuracy	99% (For water)
Nozzle Diameter	6/8mm
Count Range	1-99999
Filling Volume	3-1000ml
Air compressor connector	OD 8mm
Conveyor Load	≤12kg
Size	About 1100*580*1110mm
Package Size	About 1150*640*850mm
Net weight	About 74kg
Gross weight	About 91kg

Description

This tabletop automatic filling machine is suitable for foamy liquid, essential oil, perfume, beverage, etc. It is with chain conveyor, which has a high loading capacity. It can transport heavy products steadily and smoothly. With magnetic pumps, it can fill liquid accurately. The machine can work with tabletop labeling machine and capping machine, realizing automated production. Help to improve working efficiency.

PRODUCT DETAILS

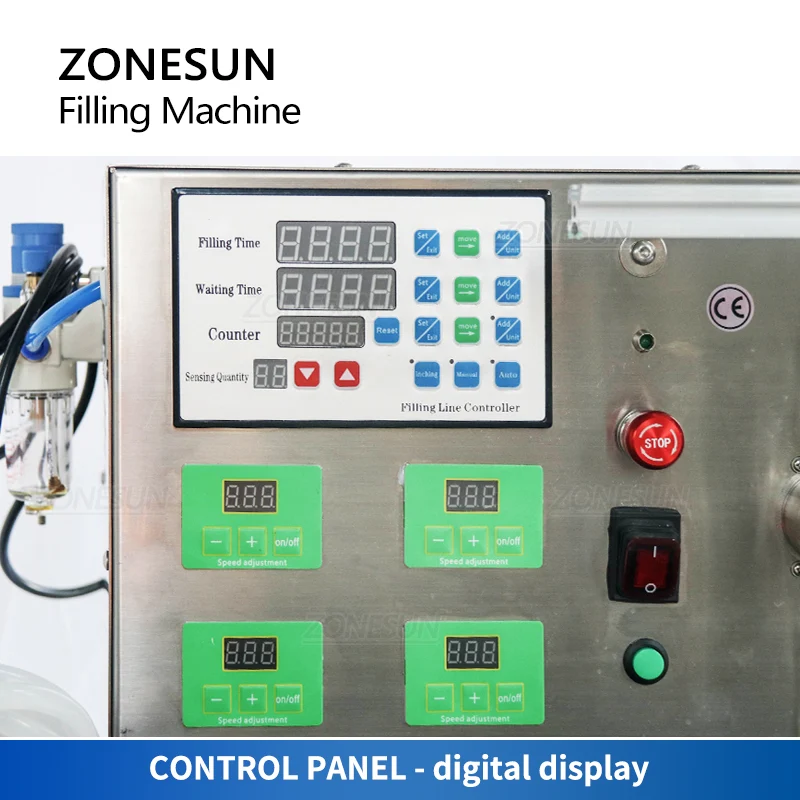

CONTROL PANEL

Digital display, easy to set the parameters and operate the machine, with a counting function.

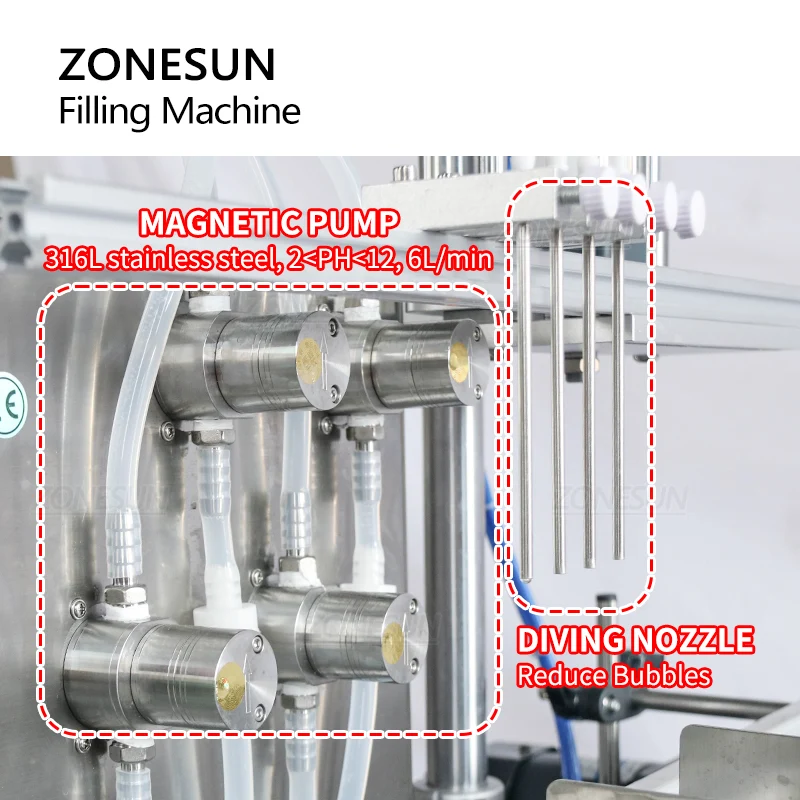

MAGNETIC PUMP

Made of 316L stainless steel, 2<PH<12, corrosive thin liquids, 6L/min.

DIVING NOZZLE

It helps reduce bubbles during filling liquids, which makes it suitable for foamy liquids.

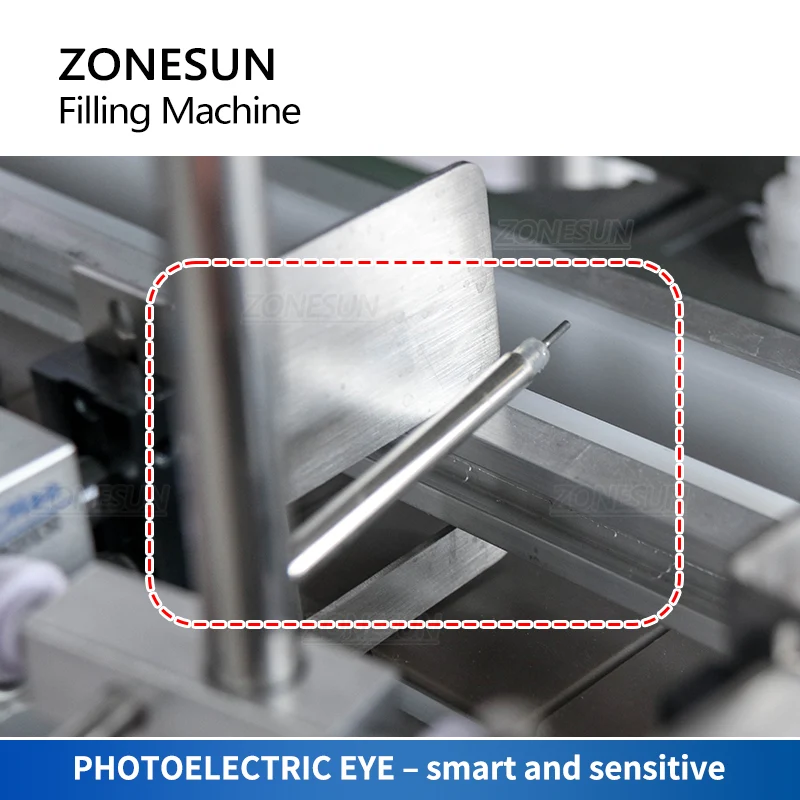

PHOTOELECTRIC EYE

It smartly detects the containers and helps to control the whole procedure.

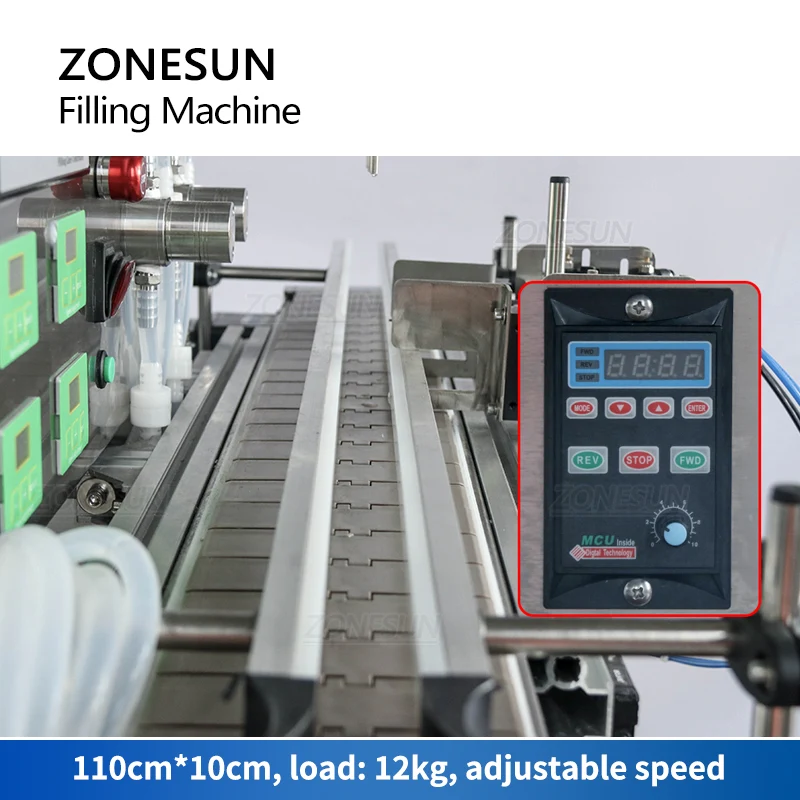

CONVEYOR

110cm*10cm, load: 12kg, adjustable speed.
