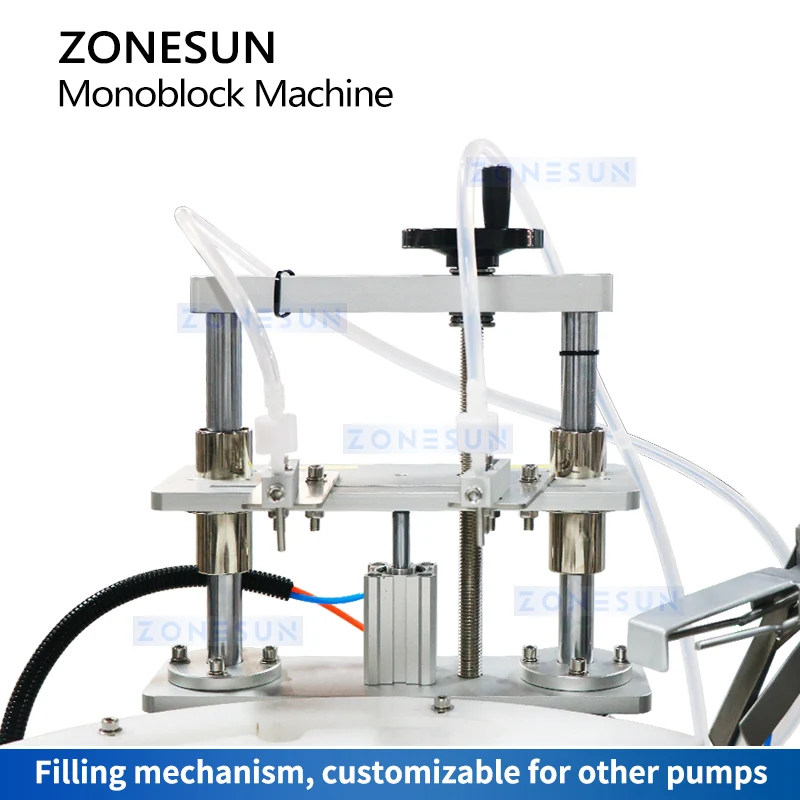

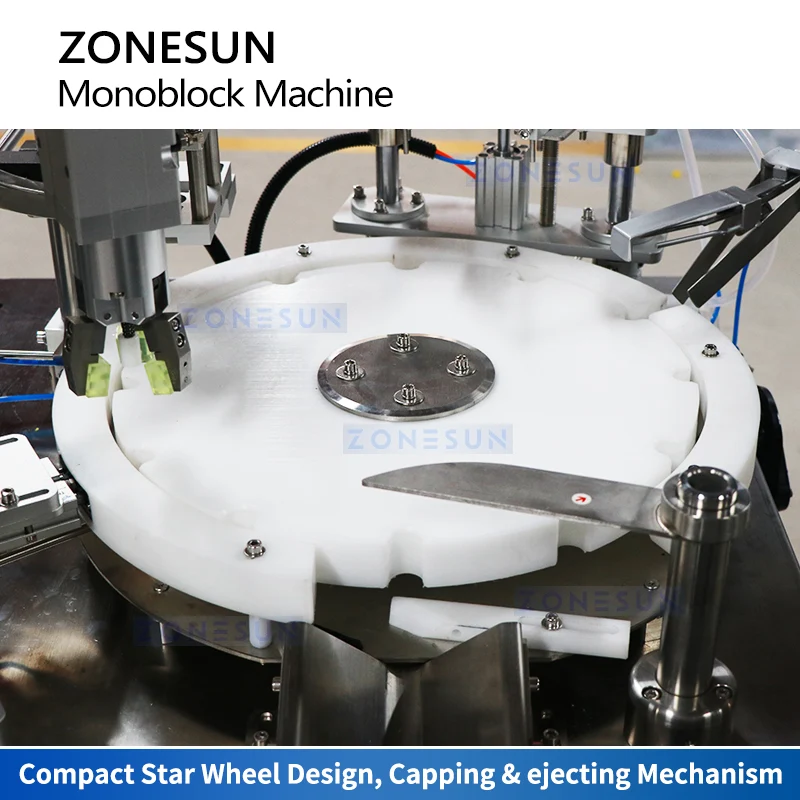

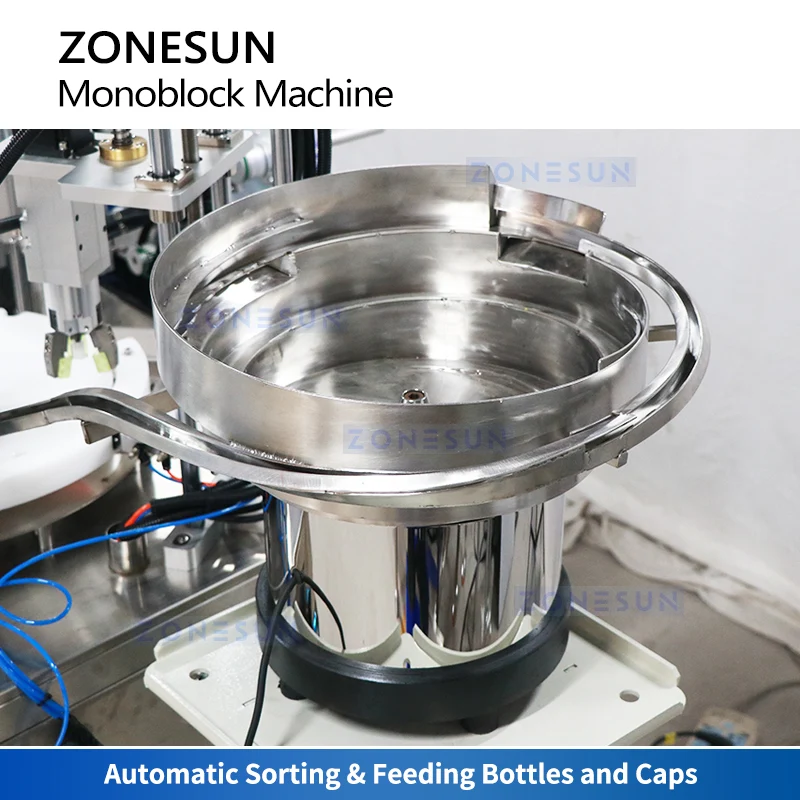

Introducing the ultimate solution for efficient and precise vial filling, capping, and labeling: the Desktop Vial Filling and Capping Machine with Integrated Labeler and Dual Vibration Bowls. This compact system seamlessly combines a desktop filling and capping machine, a desktop horizontal labeling machine, and two vibration bowls to streamline your vial packaging process.
Parameter
- Machine model: ZS-AFC35
- Machine voltage: 220V 50-60Hz
- Power: About 400W
- Filling pump: Peristaltic pump
- Production Capacity: About 10-15pcs/min (depending on liquid and bottle size)
- Filling Range: Customized
- Filling Accuracy: ± ≤1%
- Suitable Bottle Size: Customized
- Air Pressure: 0.4-0.6MPa
- Machine size: About 1800 × 750 × 1020mm
- Package size:
- About 750 × 680 × 1130mm (Vibratory Bowl Sorter)
- About 420 × 750 × 990mm (Lift table for vibratory bowl sorter)
- About 860 × 1190 × 820mm (Filling Capping Machine)
- Package weight:
- About 111kg (Vibratory Bowl Sorter)
- About 61kg (Lift table for vibratory bowl sorter)
- About 159kg (Filling Capping Machine)

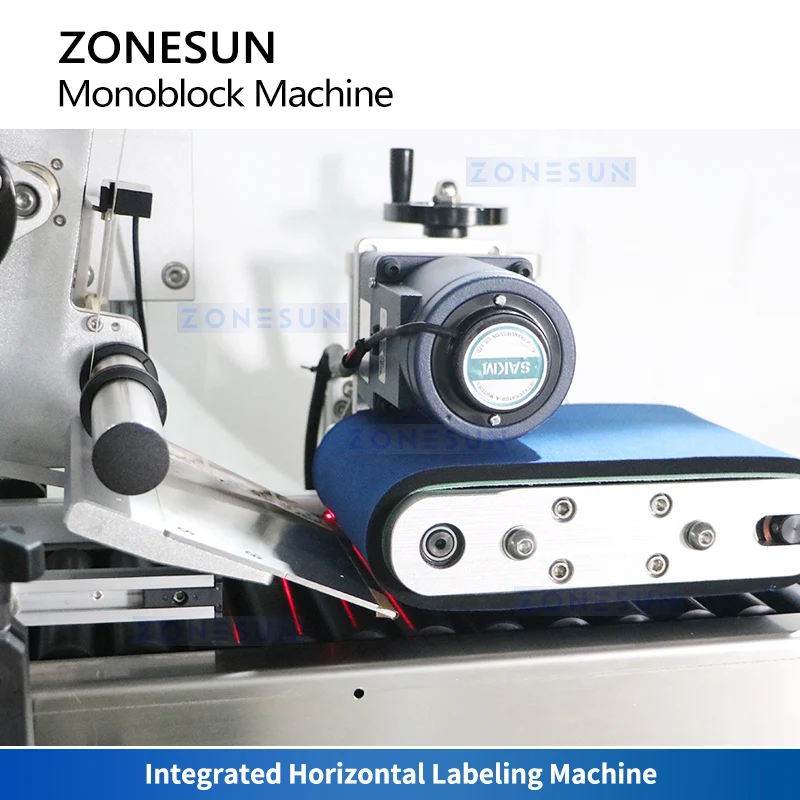

Parameter
- Machine model: ZS-TB800
- Machine voltage: 110/220V 50-60HZ
- Working speed: About 30-50 bottles/min
- Label object size: H ≤ 150mm, Φ ≤ 10-30mm
- Label size: 15-150mm (H)
- Roll inside diameter (mm): Φ76mm
- Roll outside diameter (mm): Φ350mm
- Machine size: About 1500 × 600 × 940mm
- Machine weight: About 145kg
